Transfill Adapters for Home Oxygen
.
Fill standard cylinders from a Homefill II System or from oxygen storage tanks.

We custom build adapters for any application in-house so call us if you do not see exactly what you need.

The "Check Valve" is the brass plug that connects to the Homefill Compressor.

All Hoses ship within 24 hours of order and FedEx expedited shipping is available.






TravelAirSystems/Homefilladapter.JPG

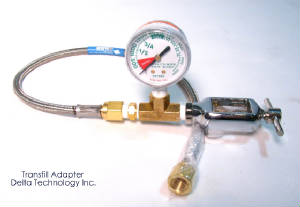

Oxygen Cylinder Filling Adapter for Homefill (2 ft. line)

This oxygen transfill hose will allow you to fill standard cylinders from your Invacare Homefill compressor.

  • 2 Ft. Stainless Steel Hose
  • CGA-870 yoke end
  • Female end accepts Invacare check valve
  • Purchase adapter with or without valve below.
  • Rated to 3000 PSI
  • Custom lengths available

2 Ft. Homefill Adapter without Check Valve
$220.00

(A check valve is needed to connect to the Homefill Compressor)

PLEASE NOTE:

A 9/16 to 1/4 adapter is needed for some check valves to make the connection to the Transfill Hose Assembly.

The valves were manufactured in two different sizes.

Please call us to verify if you need the adapter.

The high-pressure brass adapter is an additional $25.

Shipping - $20.00
Within Cont. US

2 Ft. Homefill Adapter with Check Valve
$385.00

(Connects directly to compressor)

Shipping - $20.00
Within Cont. US

TravelAirSystems/Homefilladapter.JPG

Oxygen Cylinder Filling Adapter for Homefill (4 ft. line)

This oxygen transfill hose will allow you to fill standard cylinders from your Invacare Homefill compressor. Check valve not included.

  • 4 Ft. Stainless Steel Hose
  • CGA-870 yoke end
  • Female end accepts Invacare check valve (not included)
  • Rated to 3000 PSI
  • Custom lengths available

4 Ft. Homefill Adapter with Check Valve
$275.00

check valve is needed to connect to the Homefill compressor.


Shipping - $25.00
Within Cont. US

4 Ft. Homefill Adapter with Check Valve
$430.00

Connects directly to the compressor.

Shipping - $25.00
Within Cont. US

transfill/TADevilbiss.jpg

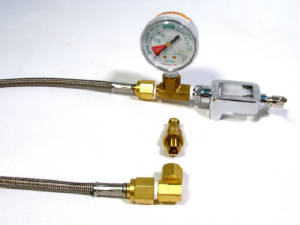

Oxygen Cylinder Filling Adapter for DeVilbiss

This oxygen transfill hose will allow you to fill standard cylinders from your DeVilbiss iFill.

  • 2 Ft. Stainless Steel Hose
  • CGA-870 yoke end
  • Female end accepts DeVilbiss check valve (if not included)
  • Rated to 3000 PSI
  • Check valve is not included with this assembly.

2 Ft. DeVilbiss Adapter without Check Valve
$220.00
Shipping - $25.00
Within Cont. US

2 Ft. DeVilbiss Adapter with Check Valve
$400.00
Shipping - $30.00
Within Cont. US

transfill/ta540to870.jpg

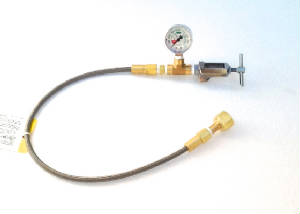

Oxygen Cylinder Filling Adapter CGA-540 to 870

This oxygen transfill hose will allow you to fill standard cylinders from an oxygen storage tank

  • High Pressure Stainless Steel Hose
  • CGA-870 yoke end
  • CGA-540 male nut & nipple end
  • Pressure gauge
  • Rated to 3000 PSI
  • Custom lengths available

2 Ft. CGA-870 Cylinder Fill Adapter
$215.00
Shipping - $20.00
Within Cont. US

4 Ft. CGA-870 Cylinder Fill Adapter
$265.00
Shipping - $25.00
Within Cont. US

transfill/ta540to540.jpg

Oxygen Cylinder Filling Adapter - CGA-540 to 540

This oxygen transfill hose will allow you to fill oxygen cylinders with CGA-540 valve from an oxygen storage tank

  • 2 Ft. Stainless steel hose
  • CGA-540 male nut & nipple ends
  • Pressure gauge
  • Rated to 3000 PSI

2 Ft. CGA-540 Standard Fill Adapter
$185.00
Shipping - $20.00
Within Cont. US

4 Ft. CGA-540 Oxygen Fill Adapter
$210.00
Shipping - $20.00
Within Cont. US

transfill/ta540pigtail.jpg

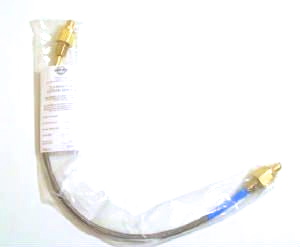

Oxygen Cylinder Transfill Pigtail CGA-540 to 540

  • High-pressure Stainless Steel Hose
  • Custom lengths available
  • Brass fittings cleaned for oxygen service
  • Tested and approved to 3000 PSI

2 Ft. CGA-540 to 540 Hose Assembly
$90.00
Shipping - $15.00
Within Cont. US

4 Ft. CGA-540 to 540 Hose Assembly
$135.00
Shipping - $15.00
Within Cont. US

6 Ft. CGA-540 to 540 Hose Assembly
$90.00
Shipping - $20.00
Within Cont. US

transfill/yokeadapterStandard.jpg

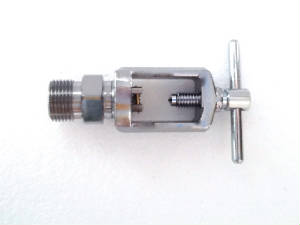

CGA-870 to 540 Yoke Adapter

This oxygen adapter will provide a CGA-540 threaded connection for a CGA-870 valve for oxygen filling.

Chrome plated brass.  Rated to 3000 PSI

$65.00
Shipping - $10.00
Within Cont. US

transfill/yokeadapter1qtrNPT.JPG

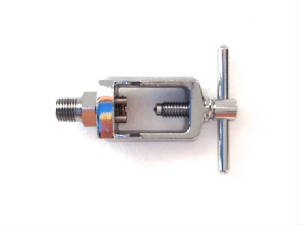

1/4 NPT to CGA-870 Yoke Adapter

This oxygen adapter will provide a 1/4 NPT female threaded connection for a CGA-870 valved cylinder.

Chrome plated brass.  Rated to 3000 PSI

$65.00
Shipping - $10.00
Within Cont. US

transfill/transfillStationwCylinders.jpg

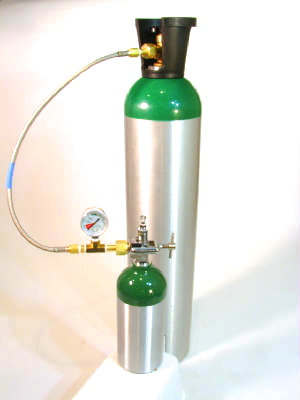

 Portable Oxygen Cylinder Filling Station (60 Cu.Ft. Tank with Adapter)

Use this lightweight 60 Cu.Ft. cylinder with transfill adapter to conveniently fill smaller portable oxygen cylinders.

  • 60 Cu.Ft. aluminum cylinder with standard CGA-540 valve with handle.
  • Cylinder specs: 1699 liters,  24 lbs., 7.25" diam., 27" tall, 2216 PSI or 153 bar, delivered empty
  • 2 ft. high-pressure braided stainless steel flexible hose.  (Longer hoses available)
  • 1/4" NPT CGA-540 connection end, and standard CGA-870 yoke style connection end.
  • Adapter may be provided with 1/4" NPT CGA-540 ends + GA-870 yoke adapter.
  • All parts new and cleaned for oxygen service, rated to 3000 PSI.

SMALLER TANK IS SHOWN FOR ILLUSTRATIVE PURPOSES AND IS NOT INCLUDED WITH SYSTEM.

$525.00

Please call for availability before purchasing.

Shipping - $65.00
Within Cont. US

transfill/transfillStationwCylinders.jpg

 Portable Oxygen Cylinder Filling Station (90 Cu.Ft. Tank with Adapter)

Use this lightweight 90 Cu.Ft. cylinder with transfill adapter to conveniently fill smaller portable oxygen cylinders.

  • 90 Cu.Ft. aluminum cylinder with standard CGA-540 valve with handle.
  • Cylinder specs: 2550 liters,  34 lbs., 7.25" diam., 36" tall, 2216 PSI or 153 bar, delivered empty
  • 2 ft. high-pressure braided stainless steel flexible hose.  (Longer hoses available)
  • 1/4" NPT CGA-540 connection end, and standard CGA-870 yoke style connection end.
  • Adapter may be provided with 1/4" NPT CGA-540 ends + GA-870 yoke adapter.
  • All parts new and cleaned for oxygen service, rated to 3000 PSI.

SMALLER TANK IS SHOWN FOR ILLUSTRATIVE PURPOSES AND IS NOT INCLUDED WITH SYSTEM.

$595.00

Please call for availability before purchasing.

Shipping - $85.00
Within Cont. US
